Heated Floor Mat

An electric underfloor heating mat and cable system with pressure sensitive adhesive for the fastest installation. Features an ultra-thin 1/8″ wire that does not raise floor levels.
Guide Price
from $12.55 /ft²
(Based on a 90 ft² purchase)


Electric icon

Floor Type

icon-checkmark  Ceramic, stone

icon-checkmark  Vinyl

Room Type

icon-checkmark  Large areas

icon-checkmark  Regular shape

Build Type

icon-checkmark  Renovation

icon-checkmark  New construction

Subfloor Type

icon-checkmark  Slab & Concrete

icon-checkmark  Timber suspended & Batten floors

What project is an Underfloor Heating Mat designed for?

The Mat System is ideal for installations within regularly shaped areas, where the 20″ or 3′ wide mats can be quickly rolled out across the floor in parallel runs.

If you intend on using vinyl, carpet, timber, tiles or any other underfloor heating compatible floor finish, the system can (and should, in some cases like for carpet) be embedded within a self-leveling compound to provide a flat and level floor surface to lay over.

Alternatively, the Foil Heater System can be used under laminate, engineered wood, or carpet and offers a completely dry construction that does not require a leveling compound. Or, if the area is irregularly shaped (not a square or rectangular form), or has multiple permanent fixtures in it (like a bathroom, for instance, with toilets, baths, sinks and more), Warmup’s DCM-PRO cable with fixing strips is the more suitable solution.

Compatible With All Floor Coverings

The Mat system can be used with all floor types compatible with underfloor heating whether you are choosing laminate flooring, vinyl, carpet, tiles or other. The compatibility with all floor coverings and the fact that mat does not visibly raise your floor height makes it the ideal system for renovation projects – just remember to double check with your flooring supplier that the floor type you want to go for is compatible with the Mat System.

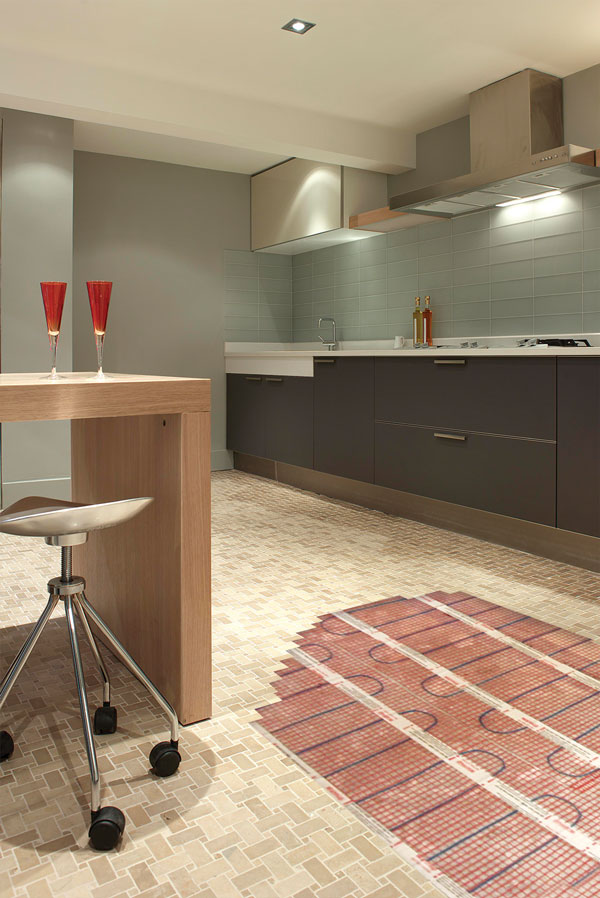

view of underfloor heating mat in kitchen


Key Benefits

N

No increase in floor levels

The thinnest dual fluoropolymer coated heating wire – less than 1/8″

N

Durability

Sturdy fiberglass mesh with pressure sensitive adhesive, for the fastest and most secure installation

N

Quick Installation

Simply roll out the mat with pre-spaced wire

How does the Heating Mat work?

The Heating Mat can be installed directly on a plywood subfloor. The product is available in both 120V and 240V. The system is ideal for use as a primary heat source and in rooms with high heat-loss such as sunrooms.

  • 120-volt and 240-volt mats offer the same efficiency. For large areas, 240V is recommended solely to cut down the amperage draw allowing you to fit more space on a single thermostat.
  • Offers heat output of 14 watts/ft²

Fast Installation

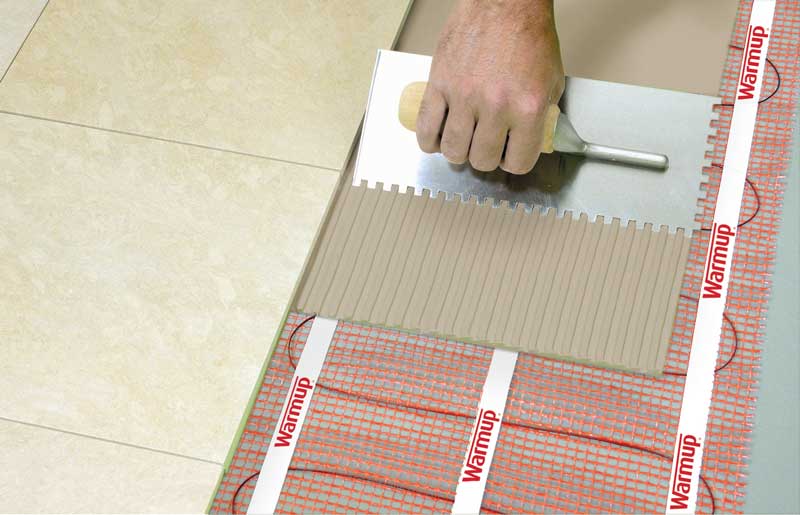

The StickyMat system consists of a thin 1/8″ wire evenly spaced and taped to a fiberglass mesh with pressure sensitive adhesive. The pressure sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the application of tile adhesive is snag free whilst allowing the mats to be easily repositioned when necessary.

The mats can be rolled out quickly across the floors reducing installation time by 35% – for a truly fast and secure method of electric underfloor heating installation. The ultra-thin heating cable is double insulated with an advanced fluoropolymer core making it incredibly durable, tough and easy to lay flooring over.

In the process of installing the StickyMat system, flexible tile adhesive and self-leveling compound may be required.

The Heating Mat system is UL Approved, meeting the highest safety standards for ultimate peace of mind.

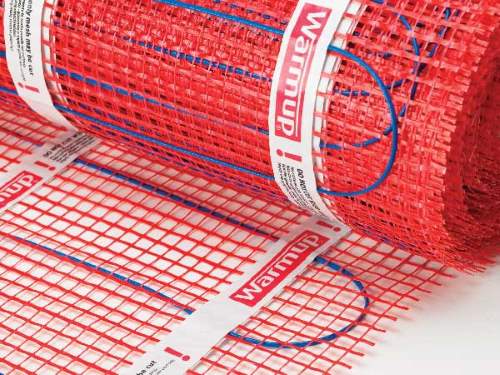

heating mat close view

Guarantee & Warranty

Safety Net Installation Guarantee

If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another heater of the same make and model free.

Lifetime Warranty

This product comes with a Lifetime Warranty since we are completely confident in the standard of our products.

Operating voltage 120V and 240V
Width 3ft
Cable thickness 1/8″
Inner /Outer Insulation Advanced fluoropolymer
Output rating 14W/sqft
Lead Wire 10ft
Approvals cULus

120V NADWM Heated Floor Mat

Area to be heated

Wattage (W)

Amps

Resistance (Ohms)

Mat Length in ft (20″ wide)

Cable Length

10

140

1.2

102.8

6

40

15

210

1.8

68.5

9

60

20

280

2.3

51.4

12

80

25

350

2.9

41.2

15

100

30

420

3.5

34.3

18

120

40

560

4.7

25.7

24

160

50

700

5.8

20.6

30

200

60

840

7.0

17.1

37

240

75

1050

8.7

13.7

46

300

90

1260

10.5

11.4

55

360

110

1540

12.8

9.4

67

440

120

1620

13.5

8.9

73

480

240V NADWM Heated Floor Mat

Area to be heated Wattage (W) Amps Resistance (Ohms) Mat Length in ft (20″ wide) Cable Length
25 350 1.5 164.6 15 100
40 560 2.3 102.9 24 160
50 700 2.9 82.3 30 200
75 1050 4.4 54.9 46 300
90 1260 5.3 45.7 55 360
110 1540 6.4 37.4 67 440
150 2100 8.8 27.4 91 600
180 2520 10.5 22.9 110 720
220 3080 12.8 18.7 134 880
240 3240 13.5 17.8 146 960

StickyMat

 Model

Mat length (ft)

Cable length (ft)

Amps

Resistance (Ohms)

NADWM-09-120

3

31.82

1.05

114.3

NADWM-15-120

5

54.97

1.75

68.5

NADWM-18-120

6

63.65

2.10

57.1

NADWM-24-120

8

86.79

2.80

42.9

NADWM-30-120

10

109.93

3.50

34.3
